Spot 2800W Electric Radiant Heater

No Aggressive Red Light - Produces
a very ambient modest light

HEATSCOPE® Spot radiant heaters produce a subtle orange glow which is only 30-40% of the light output of the traditional radiant heaters. The reduced light output is due to the use of a color matching grill screen in front of the satin surface carbon heating elements that can be either a black or white. They are midwave radiant heaters that produce heat almost instantly (less than 15 seconds) and are ideal for providing heat to outdoor areas such as partially open patios or balconies.

The Spot 2800W is UL Listed.

Product Configuration

Select Model Finish*

How to choose the right finish?
Black
Black  - Studio Image by Heatscope Heaters
White
White  - Studio Image by Heatscope Heaters

Select Heater Control*

Which option is right for me?
Manual Mode  - Studio Image by Heatscope Heaters
Manual Mode The heater will be hardwired to your fuse box. To turn the appliance on and off you will need to install a dual isolation switch (not included).
IR Remote Control  - Studio Image by Heatscope Heaters
IR Remote Control Control HEATSCOPE® heaters with the infrared Remote Control. Switch on and off, and change power levels of your heaters.
Dual WiFi Smart Switch  - Studio Image by Heatscope Heaters
Dual WiFi Smart Switch It is installed inline between the fuse box and the HEATSCOPE® heater, and it allows the appliance to receive commands via a smartphone. Learn More
Dual Wi-FI Smart Switch supports Amazon Alexa and Google Assistant

Add Zigbee Accessories

How does the technology work?
ZigBee Bridge Accessorie - Studio Image by Heatscope Heaters
ZigBee Bridge The heart of a smart home/space automation. Remotely manage a selection of up to 32 ZigBee devices and sensors.

Zigbee Add-Ons*

*Require the Zigbee Bridge
ZigBee Bridge Accessorie - Studio Image by Heatscope Heaters
ZigBee Wireless Switch
ZigBee Bridge Accessorie - Studio Image by Heatscope Heaters
ZigBee Motion Sensor

Add Lift System

What is the Lift System?
Lift Accessorie - Studio Image by Heatscope Heaters
Lift

Lift Add-Ons*

*Require the Lift System
Lift Accessorie - Studio Image by Heatscope Heaters
Spot 2800 Lift Box
Lift Accessorie - Studio Image by Heatscope Heaters
Spot 2800 Lift Frame

Add Mounting Accessories

100mm Extension Rods Black Accessorie - Studio Image by Heatscope Heaters
100mm Extension Rods Black
100mm Extension Rods White Accessorie - Studio Image by Heatscope Heaters
100mm Extension Rods White
300mm Extension Rods Black Accessorie - Studio Image by Heatscope Heaters
300mm Extension Rods Black
300mm Extension Rods White Accessorie - Studio Image by Heatscope Heaters
300mm Extension Rods White
500mm Extension Rods Black Accessorie - Studio Image by Heatscope Heaters
500mm Extension Rods Black
500mm Extension Rods White Accessorie - Studio Image by Heatscope Heaters
500mm Extension Rods White

Add Weathershield

Weathershield 3 Black Accessorie - Studio Image by Heatscope Heaters
Weathershield 3 Black
Weathershield 3 White Accessorie - Studio Image by Heatscope Heaters
Weathershield 3 White

Included Accessories

  • Mounting Parts

Key Features

Efficiency made simple

HEATSCOPE® is committed to efficiency! All VISION, SPOT and PURE radiant heaters were developed in accordance with the newest findings concerning the mid-wave IR range. This means that between 90% and 94% of the energy used is turned directly into ambient heat.

Real infrared

All HEATSCOPE® design radiant heaters produce natural infrared heat in the (fast) mid-wave IR range. This means that the heat feels particularly pleasant and is effective exactly where it is needed – that’s directly under the first layers of skin, but not too deep in the tissue.

Inviting & cosy

Other radiant heaters use light tubes to produce heat as a by-product – at HEATSCOPE® we exclusively use innovative carbon technology: two carbon spirals are powered with an electric current, they begin to glow and produce a particularly pleasant warmth.

Super fast

Output peaks are a thing of the past with HEATSCOPE® power heaters. Although the heaters start up slowly, they reach 100% in no time: the range of SPOT models take only 15 seconds, and the VISION & PURE range takes a maximum of 30 seconds owing to the glass front.

Full control

The separate model ranges are either delivered with their own IR remote control or with a 4-wire cable for integration into an external control system (output dependent).

Award-winning design

Delivers pleasant heat without the distraction. Clean-cut, modern designs and colours easily blend into any decor.

Weather-resistant

All models are certified with an IP rating for protection against dust, splash-water, and wind.

No aggressive red light

Produces a very ambient, modest light based on double carbon heating elements.

High efficiency

Up to 94% of the energy used is turned into ambient heat and transferred directly to nearby people and surfaces for maximum efficiency.

Smart switch

Operate and sync your heater(s) with your smart device (compatible with Alexa and Google Assistant). *Internet connection and additional accessories required

2-year warranty

Our radiant heaters come with an industry leading two-year limited warranty.

Technical Specifications

Installation Height
2.1-3 m
Power / Current
2800 W
/ 12.17 A
Voltage
220-240 V AC ~
50/60 Hz
Max. Power In
15 sec
Radiant Efficiency
94%
Visible Light
< 600 Lumen
*All values are approximate. Max. temperature increases achievable in enclosed spaces at 16 °C (dependent on the respective installation conditions and mounting height).

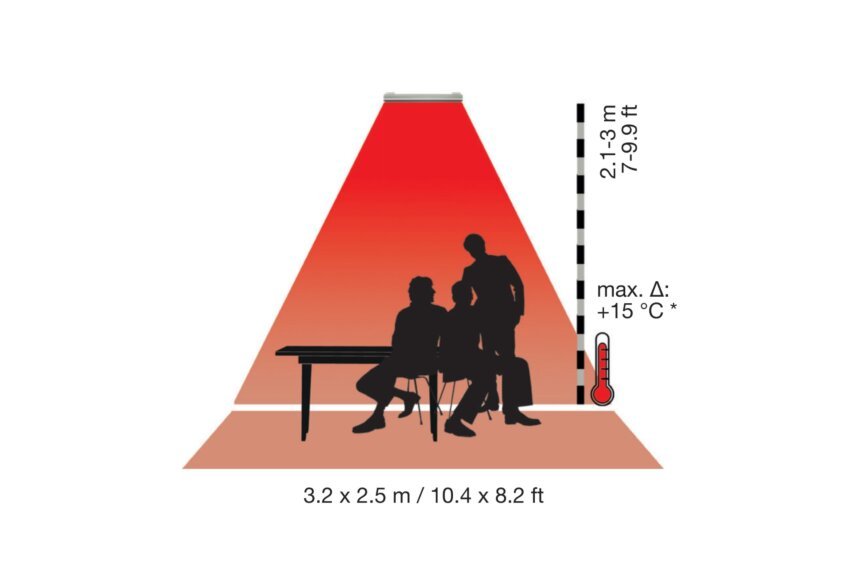

Coverage Area

This graphic shows the heating performance of Heatscope Spot 2800W heaters. Please note that the heat output always depends on a wide range of factors.

They include: Installation environment (indoors or outdoors, enclosed or open, wind-protected or wind-prone), installation height, radiation angles, weather, voltage fluctuations, etc.

Please consider all these factors in your planning.

*All values are approximate. Max. temperature increases achievable in enclosed spaces at 16 °C (dependent on the respective installation conditions and mounting height).

Construction

  • MPN (Black) MHS-SM2800AB.100
  • MPN (White) MHS-SM2800WT.100
  • Weight 4.5kg [9.9lb]
  • Model Dimensions mm [in] L 884mm [34.8in] W 184mm [7.2in] H 78mm [3.1in]
  • Application Indoor & Outdoor
  • Materials Aluminium body, glass ceramic front
  • Colours

FAQ's

View All

What type of infrared waves are produced by other outdoor patio heaters available in the market?

Other infrared patio heaters produce short waves which creates an aggressive red light and an intense, uncomfortable heat.

What exactly is infrared? And what impact does infrared radiation have?

Every object that gives off heat is an infrared radiator – including the human body. This radiation always depends on the wavelength in which the heat radiation is emitted. There is a difference between short waves, mid-waves and long waves.

The general rule of thumb is: the shorter the wave, the brighter the light emitted and the deeper the rays penetrate into the tissues in the body.

The most effective and pleasant waves are the mid-waves (HEATSCOPE® VISION) or the fast mid-waves (HEATSCOPE® SPOT) – these produce the highest possible heat output with high radiant efficiency whilst generating the lowest possible light output.

Can I install my HEATSCOPE® vertically?

Pure is the only heating system that can be installed vertically or horizontally. Spot and Vision can only be installed horizontally. Please review the installation manual for further instructions.

Are HEATSCOPE® heaters supplied with a plug?

No, they are supplied with a power cable and must be connected to your electrical circuit. For installation use only the supplied accessories or original accessories approved by the Manufacturer.

Are there any guidelines that I must follow to install the radiant heater?

Your electrician must follow the installation instructions set by the manufacturer, and make all connections in accordance with AS/NZS 3000:2018 Wiring rules. Please refer to the installation manual.

Why are there design heaters with and without a glass front?

At HEATSCOPE® you can choose between different model ranges. The main difference – along with the length and output – is the design of the front side.

The VISION ambient heater has been equipped with a SCHOTT® NEXTREMA® glass ceramic front, whereas the SPOT power heater has an open fin front screen.

The NEXTREMA® glass reduces the already low light output (only 30% when compared with conventional heaters) by half again to reach a barely perceptible minimum of just 15%. However the glass front also makes the ambient heater more vulnerable to wind.

For this reason, the VISION models should only be used in areas protected from wind.

Why are the carbon fibres used in HEATSCOPE® radiant heaters better than other heating elements?

The carbon fibres have a lifespan of at least 10,000 operating hours. This is significantly longer than tungsten, halogen light tubes or quartz elements used in other outdoor heating systems. Carbon fibres produce immediate and comfortable heat when and where you need it.

Are HEATSCOPE® heaters water resistant?

All HEATSCOPE® VISION and SPOT radiant heaters are protected against dust and splash-water (IP44 and IP24)! In other words: the heaters require additional protection from above/behind against persistent or strong rain, such as a canopy or roof.

In general though a wall projection (or similar) is sufficient. If no rear protection is possible and the heater is to hang completely freely, a HEATSCOPE® weather protection shield is obligatory in all cases.

The weather protection shields are available in black or white and incorporate the shape and curvature of the rear side of the design radiant heater.

In this way, HEATSCOPE® VISION (IP44) and SPOT (IP24) heaters are optimally protected against wind and weather.
